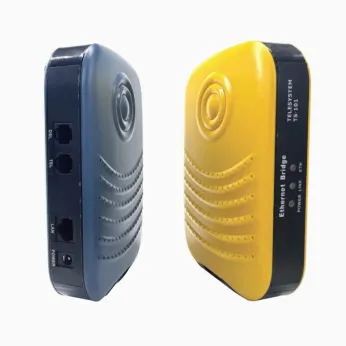

Prix Phoneline Ethernet Bridge VDSL

38 000 DA

Brief introduction:

VDSL2can expand the transmission frequency bandwidth of existing phone line through digital technology, it modulates the analogue voice and non voice signals into the code number signals to transfer, then demodulates and receives the data in the central terminal. The technology can meet many demands of multi-media video and voice services just as VoIP, IPTV AND visible telecommunication etc.. WD- V101(M)/V101(S) provides a solution of P2P, it is widely used in public security, education, health care, railway, mine and focus media etc...

Specification:
Model

WD-V101(M)

WD-V101(S)

Interface

1*10/100Base-TX self-adaption RJ,2*RJ11, 1*external power

LED display light

ETH,DSL,PWR

Protocol

ITU-T G.993.2

Transmission rate

100Mbps

Modulation

DMT

Frequency band

25K-30MHz

Transmission distance

2000m

Power consumption

≤5W

O/S

Windows 98/ME/NT/2003/7,Windows XP Home/Pro,Mac OSX, Linux

Size

160mm×107mm×30mm(L×W×H)

Weight

0.4kg

Operating environment

Working temperature:-20ºC-80ºC

Working humidity:10%-85% no condense

Storage humidity:5%-90% no condense

Certification

FCC,CE,ROHS

Working voltage

DC12V 1A

Features:
Plug and play, long transmission distance
WD-V101(M)/V101(S)is designed for users to solve the problem of long distance transmission, it's easy to install, the transmission distance up to 2-3km through connecting master and slave devices. The device is easy to maintain and suit to mine, factory, railway etc..

More functions and support several connection modes

Support p2p connection and VoIP penetration

Support VDSL2 voice splitter

Support the network modes of DHCP,PPPOE and statistic IP

Support uploading and downloading rate setting

Support TR-069 remote management.

DMT modulation technology can auto adjust the rate to suit the different circuits, it can provide high performance transmission even in a noise interference environment.

Low cost, great profit:
The traditional phone operators can provide the users triple high quality multi-media services just as video, voice and high speed network surfing etc. with VDSL2 technology. All of these make the operators can get high profit at the minimum investment.

Topology:
Phoneline Ethernet Bridge VDSL used for office or home internet
