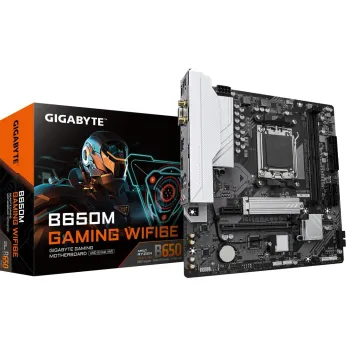

Price GIGABYTE B650M GAMING WIFI-6E

35 900 DA

type Mainboard
Color black/silver
EAN 4719331867942
Manufacturer’s No. B650M GAMING WIFI6E
base AM5
Maximum supported CPUs 1
operating system Support Windows 10 ready, Windows 11 ready
processor Supported models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Chipset AMD B650
slots PCIe x16 1x (of which: 1x PCIe x16)
PCIe x1 1
BIOS 256Mb (32MB) SPI
EFI BIOS Yes
Form factor µATX
use PC
power supply ATX12V (24-Pin + 8-Pin)
memory maximum 128 GB
Number of sockets 2x DDR5
supported standards DDR5-6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400
Channels 2
Maximum storage ranks 4
Maximum data density 4096 Mbit
External connections Mouse/keyboard combo (PS/2) 1
USB-A 3.2 Gen 1 (5 Gbit/s) 2
A notice: The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 and USB 3.0.
The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 and USB 3.1.
USB-A 2.0 3
HDMI 1
DisplayPort-Out 1
microphone 1
Line-In 1
Line-Out 1
RJ-45 1
Bluetooth Yes
Wi-Fi Yes
Internal connections SATA 4
M.2 1
M.2 Module Key M
M.2 interface PCIe
M.2 Length 80 – 80 mm
RGB LED Header 1
addressable RGB LED header 2
USB-C 3.2 Gen 2 (10 Gbit/s) 1
4-pin PWM fan 3
Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
USB 2.0 4
TPM Yes
SATA controller AMD B650
directly usable RAID levels 0, 1, 10
USB controller AMD B650
Onboard graphics The motherboard’s graphics ports can only be used when using a CPU with an integrated graphics chip.
Sound Realtek Audio CODEC
LAN Realtek 2.5 GbE LAN
Realtek Wi-Fi 6E RTL8852CE + Bluetooth 5.3
Further information To support even the latest processor cores, a BIOS update may be required.
Dimensions Width: 244 mm x Height: 244 mm
WEEE number 54978142
