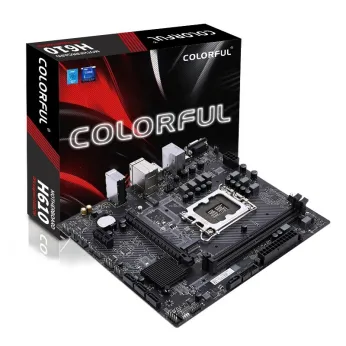

Prix CARTE MERE COLORFUL H610M-D V20A

18 900 DA

Model H610M-E M.2 V20
Chipset Intel H610
Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(* Please visit for the latest memory compatibility list)
Memory Two DDR4 memory slots are provided, which can support up to 64 GB of memory (a single slot can support up to 32 GB of memory)
- DDR4-3200/2933/2666/2400MHz memory
- support dual-channel memory technology
(* Please visit the official website of Rainbow for the latest memory compatibility list)
SATA Ports A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported
- M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
Board I/O Rear I/O interface:
- 1 PS/2 interface
- 4 USB 2.0 interfaces
- 2 USB 3.1 Gen 1 Type-A interfaces
- 1 HDMI 2.0 interface, Up to 4K 60Hz resolution
- 1 VGA interface
- 1 Gigabit network interface
- 3 audio interfaces (audio input/audio output/microphone)
Onboard device interface:
- 1 CPU fan pin
- 2 system fan pins
- 1 water cooling pump pin
- 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
- 1 USB 3.1 Gen 1 pin can expand 2 USB 3.1 Gen 1 Type-A interfaces
- 1 front audio pin
- 1 front panel pin
- 1 speaker pin
- 1 Clear CMOS jumper
- 1 COM port pin
- 1 BIOS burner pin
- 1 POST Card pin
- 1 ME write protection jumper
Expansion Slots 1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot
BIOS 128M UEFI, supporting multiple languages
Power Management Support S3, S4, network S5 wake-up, support timed startup, call startup
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8111H Gigabit network card
Audio 7.1 sound card
Configuration M-ATX
225mm x 194mm
